The DG-29 walk-behind grinder is a powerhouse designed for large-scale concrete preparation and polishing. With a 29.5” cleaning path, this heavy-duty machine is built for efficiency, covering more surface area in less time. Its robust 20 HP motor and powerful inverter provide the torque needed for demanding applications, while the variable disc speed of up to 1,800 RPM ensures precision in grinding and polishing. Equipped with three 12.6” grinding discs and 18 grinding pads, the DG-29 excels in aggressive material removal and fine surface finishing. A 2” dust port enhances dust control when connected to a proper vacuum system, keeping the worksite cleaner. Built for durability and performance, the DG-29 is ideal for professionals tackling large commercial and industrial flooring projects.

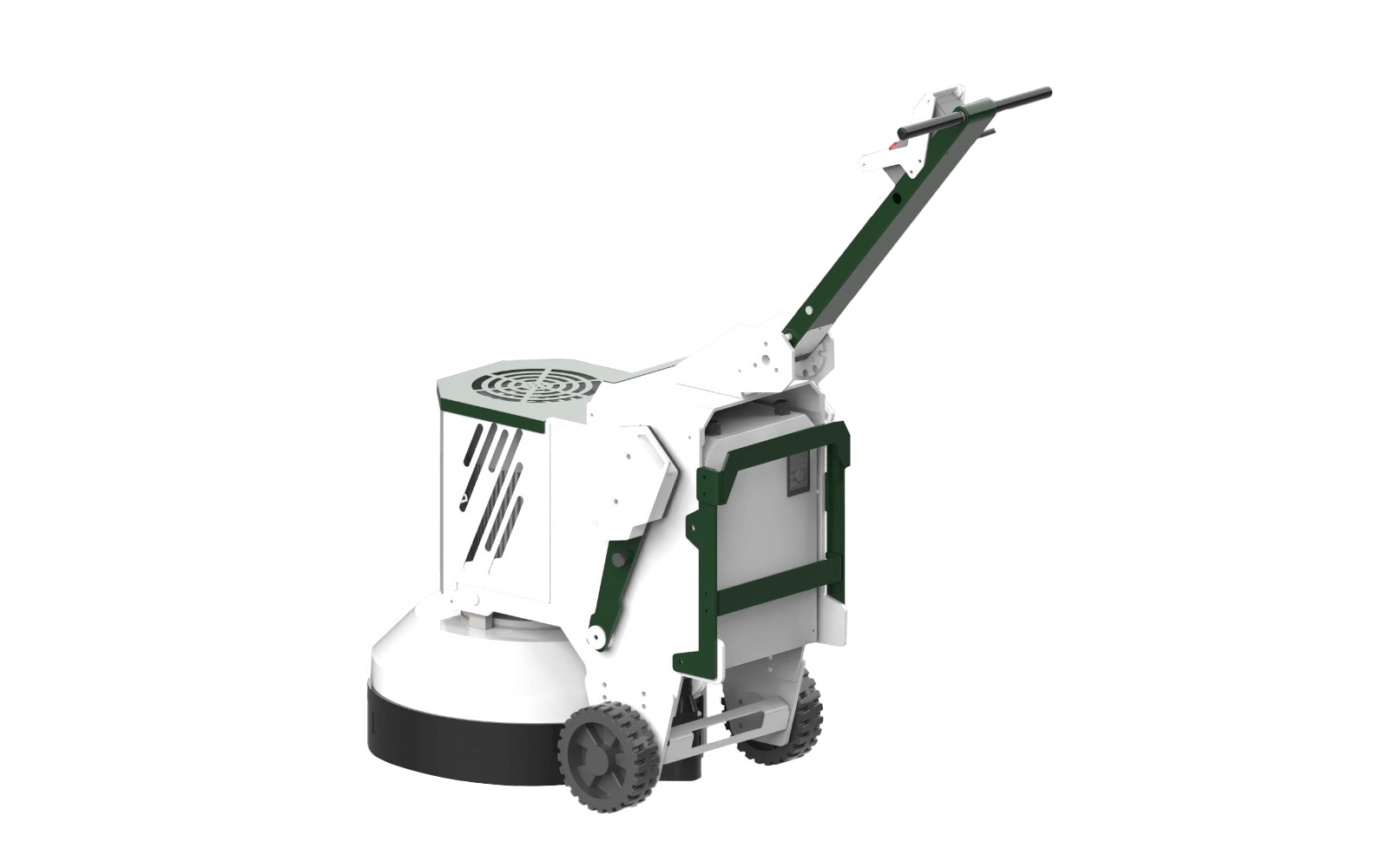

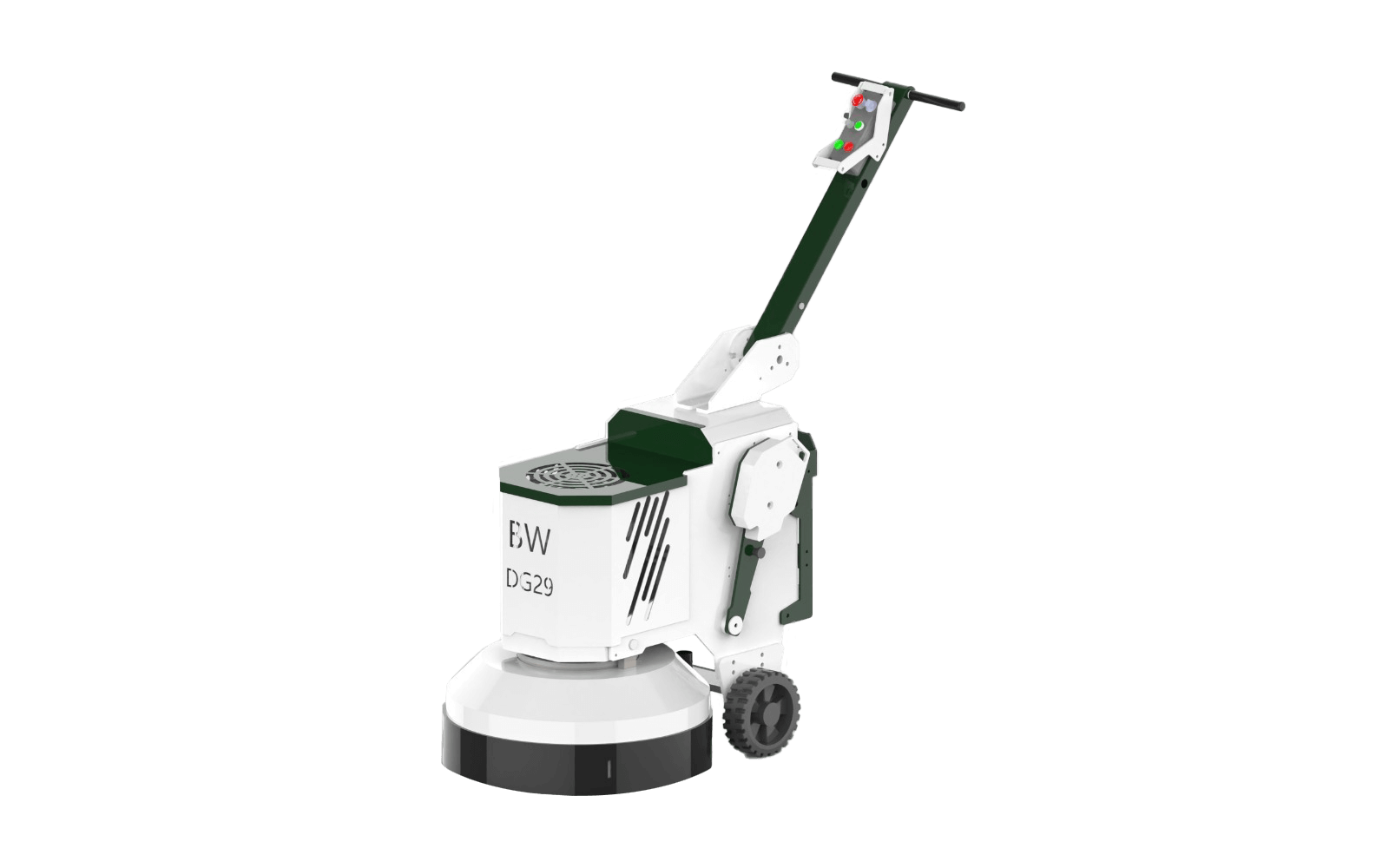

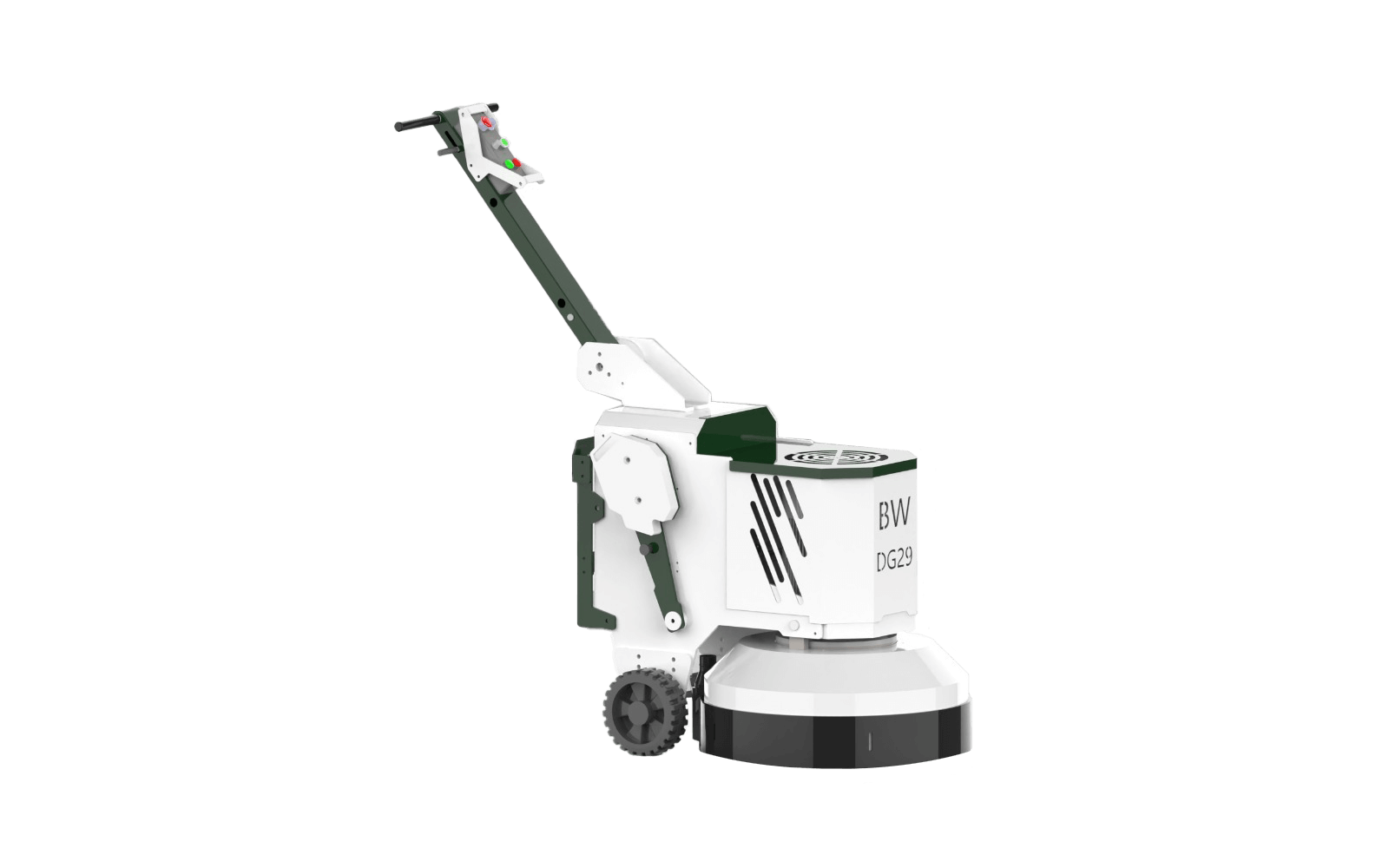

DG-29 Concrete Floor Grinder
SKU: DG-29
Category: Diamond Grinding/Polishing
Cleaning Path: | 29.5276 inches / 750mm |
Height: | 48.0315 inches / 1220mm |
Length: | 96.45 inches / 2450mm |
Width: | 29.9213 inches / 760mm |
Weight: | 992.08lbs / 450KG |
Motor spec (HP) | 20HP |
Voltage: | 220 (3 phase) |
Current(max)(A): | 52 |
Disc Speed (RPM): | 0~1800 |
Grinding Disc quantity: | 12.6 inches*3 / 320mm*3 |
Grinding Pad quantity: | 18 |
Dust Port: | 2 inches*1 |
