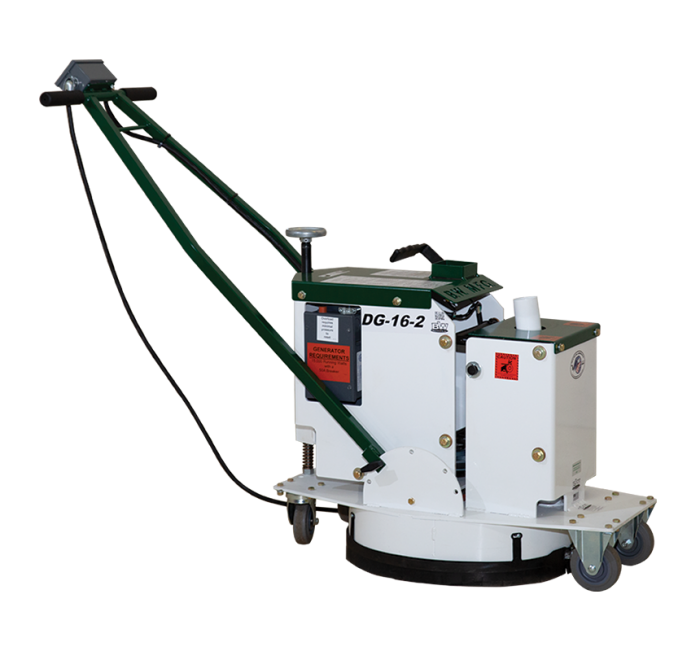

DG-16 Diamond Grinder/Polisher

Name: DG-16 Diamond Grinder/Polisher
SKU: DG-16
Availability: InStock

$0.00

SKU: DG-16 Category: Diamond Grinding/Polishing Tag: D-1800-FT4

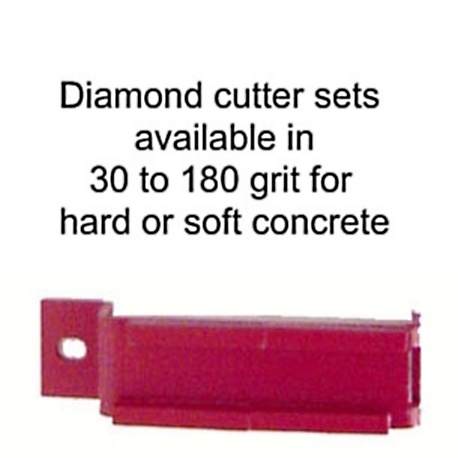

The DG-16 walk behind is unlike any other grinder on the market today. The 16” floating grinding head is adjusted up and down using spring pressure, allowing infinite adjustability. A specifically designed shroud keeps the machine and work area virtually dust-free when connected to the A-101 Pulse Vac. The DG-16 is designed for coating removal to high gloss polishing on totally dry concrete. Course diamond segments, for coating removal, can easily be changed to fine resin pads to reach your desired gloss.

(616) 447-9076 Technical Support: (616) 843-7962

Products Proudly

Have a question about BW Manufacturing products or services?

BW

Cleaning Path:	16″ (41cm)
Side Grind Clearance To Wall:	1″ (3cm)
Front Grind Clearance To Wall:	6″ (15cm)
Wheels:	2 @ 4″ Rigid
	2 @ 4″ Swivel
Height:	29″ (74cm)
Length:	24″ (61cm)
Width:	18″ (46cm)
Weight:	210 LBS (95kgs) (Electric Model)
	225 LBS (102kgs) (Gas Model)
Motor Options:	5hp 220 Volt Single Phase
	5hp 440 Volt Three Phase

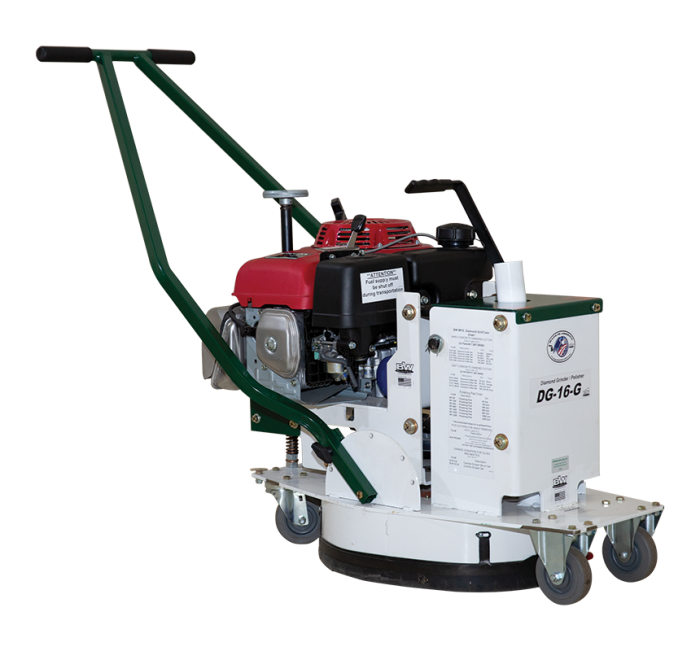

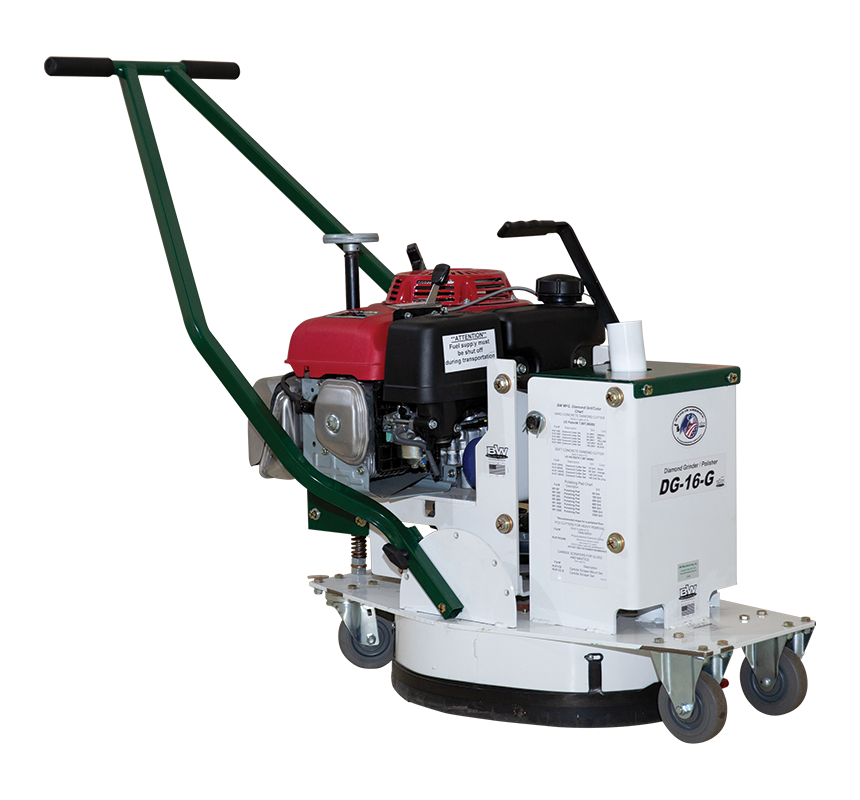

	13ha Gas (Honda)
Generator Requirements (220V only):	15,000 Running Watts With A 50 Amp Breaker
Seal System:	Brushes
Control Handle:	Fully Adjustable
Production Capacity:	700 to 1000 Square Foot Per Hour (65 to 93 Square Meters Per Hour)
Diamond Life:	3000 to 7000 Square Feet (278 to 650 Square Meters)

DG-16 Diamond Grinder/Polisher
